So I bought a new Swarovski z3 3-10-42 plex scope. The scope only has two knobs but they push/pull out. I have researched and read owners manual but can’t figure out what that is for. Any help is greatly appreciated. I get one is for setting zero on the scope.
|
|
|
|
|
Joined: Apr 2017
Posts: 18,058 Likes: 43
Old Mossy Horns
|
|
Old Mossy Horns
Joined: Apr 2017
Posts: 18,058 Likes: 43 |

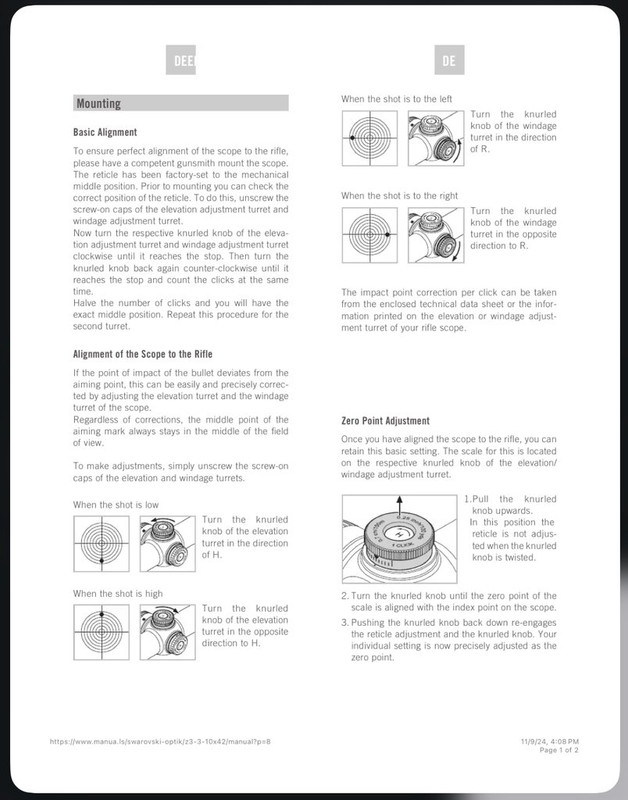

Top knob is for the horizontal crosshair and the side knob is for the vertical crosshair. After zeroing your scope, you can pull the turret out til it clicks to move it back to zero without the crosshairs moving then push it down to engage the splines of the erector assembly. This only matters if you ever plan on dialing for distance and need to count clicks. IMO Z3 turrets are better suited for set & forget status. ![[Linked Image]](https://i.postimg.cc/3JkvPG1q/IMG-8879.jpg)
We’re not dead. We just smell that way. Dayum. - AC870
Yessir! I’m always gonna shoot what makes me happy and I want everyone else to do the same! If you shoot one be proud of it and don’t worry what anyone else thinks. - SJ22
|
|
|
|
|
Joined: Jul 2012
Posts: 2,417 Likes: 1
10 point
|
|
10 point
Joined: Jul 2012
Posts: 2,417 Likes: 1 |
Thanks. Then I must have some other problem because we are shooting 6 inches right and the scope cannot be moved anymore.
|
|
|
|
|
Joined: Jan 2018
Posts: 5,369 Likes: 48
12 point
|
|
12 point
Joined: Jan 2018
Posts: 5,369 Likes: 48 |
That likely points to holes in the receiver drilled out of square, or a problem with the mounts.
|
|
|
|
|
Joined: Jan 2008
Posts: 3,628 Likes: 2
10 point
|
|
10 point
Joined: Jan 2008
Posts: 3,628 Likes: 2 |
Keep your booger hooker off the bang switch.
|
|
|
|
|
Joined: Mar 2011
Posts: 1,555 Likes: 31
8 point
|
|
8 point
Joined: Mar 2011
Posts: 1,555 Likes: 31 |
|
|
|
|
|
Joined: Jul 2012
Posts: 2,417 Likes: 1
10 point
|
|
10 point
Joined: Jul 2012
Posts: 2,417 Likes: 1 |
Rings and bases are Talley lightweights which was recommended. I have always used dnz mounts
|
|
|
|
|
Joined: Jul 2012
Posts: 2,417 Likes: 1
10 point
|
|
10 point
Joined: Jul 2012
Posts: 2,417 Likes: 1 |
Does the turret have to be in a certain spot to zero the scope.
|
|
|
|
|
Joined: Mar 2011
Posts: 1,555 Likes: 31
8 point
|
|
8 point
Joined: Mar 2011
Posts: 1,555 Likes: 31 |
Talley makes excellent rings/bases. So does DNZ.
Is this a new rifle?
|
|
|
|
|
Joined: Jul 2012
Posts: 2,417 Likes: 1
10 point
|
|
10 point
Joined: Jul 2012
Posts: 2,417 Likes: 1 |
New Kimber rifle. New rings. New scope.
|
|
|
|
|
Joined: Jan 2018
Posts: 5,369 Likes: 48
12 point
|
|
12 point
Joined: Jan 2018
Posts: 5,369 Likes: 48 |
Next step for me would be remove everything from the rifle, center the reticle on the scope, and re-mount.
If you have a small square, you can check the mounting hole alignment when you take off the rings. You could check the rings the same way.
I have mounted well over 200 scopes in the last 10 years or so. I have never found a bad Talley ring, but I have found 2 rifles, one lower priced, and one very expensive, that had the mounting holes drilled slightly out of square. Both rifles were replaced by the manufacturers.
|
|
|
|
|
Joined: Mar 2011
Posts: 1,555 Likes: 31
8 point
|
|
8 point
Joined: Mar 2011
Posts: 1,555 Likes: 31 |
Leupold has made an adjustable scope base forever with two set screws where the rear scope ring goes that can probably correct the issue if Kimber doesn’t warranty the issue if the base holes are indeed drilled wrong on the receiver
|
|
|
|
|
Joined: Aug 2006
Posts: 5,998 Likes: 50
12 point
|
|
12 point
Joined: Aug 2006
Posts: 5,998 Likes: 50 |
Next step for me would be remove everything from the rifle, center the reticle on the scope, and re-mount.
If you have a small square, you can check the mounting hole alignment when you take off the rings. You could check the rings the same way.
I have mounted well over 200 scopes in the last 10 years or so. I have never found a bad Talley ring, but I have found 2 rifles, one lower priced, and one very expensive, that had the mounting holes drilled slightly out of square. Both rifles were replaced by the manufacturers.
This 👆- Great advice!
John 3:16: "For God so loved the world that he gave his one and only Son, that whoever believes in him shall not perish but have eternal life".
|
|
|
|
|
Joined: Jul 2010
Posts: 9,908 Likes: 2
14 point
|
|
14 point
Joined: Jul 2010
Posts: 9,908 Likes: 2 |
Leupold has made an adjustable scope base forever with two set screws where the rear scope ring goes that can probably correct the issue if Kimber doesn’t warranty the issue if the base holes are indeed drilled wrong on the receiver Leupold along with a lot of others.... This has been the solution for this problem for near 100 years maybe longer. The good news is... it also works. 100% of the time. BUT.... If you can't figure it out after you've been told and think buying rings with Talley on the package is all you need to do.... that might not work out for you. You didn't mess up trying them but if they don't work they don't work. You can also get Burris Signature rings as they are also adjustable in this way through the ring insets themselves not the base. Consider this might be a common issue? Given that there are multiple solutions readily available.... Regardless if you like them or not.... Things work they way they do in this world sometimes for a reason. There isn't a thing wrong with a set of Leupold Rings and bases. Re-mount with something different than the Talleys you bought for it and be done with this.
